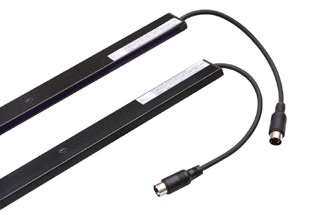

Elevator Light Curtain B

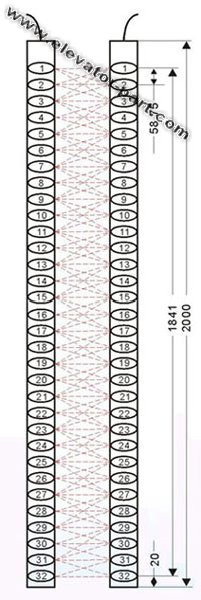

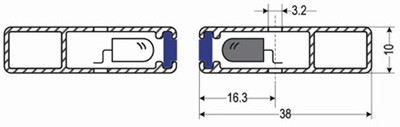

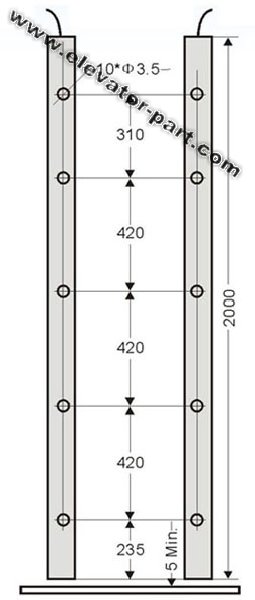

Installation drawing for B model:
System Connection:
The system has been designed to connect to the door operator or lift controller directly. When the infra-red beams
are obstructed, a system trigger occurs and switches a relay or transistor output. This is used by the door ft
controller to re-open the doors. The standard output is relay contact 1 opend 1 cloesd.

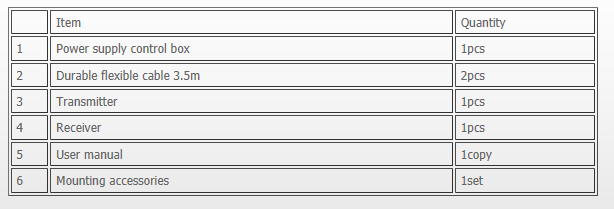

Complete light curtain B is including:
1.Payment: We accept 100% TT, Western Union
2.Shipping: Delivered By Express Courier ( DHL,FEDEX,EMS,etc.),By Air or By Sea.
3.Package: Standard Export Carton or Wood box.
4.Delivery: The delivery time 3-7 working days after get payment.
5.Guarantee: Our company offers 1 year guarantee for all parts under normal use.
You are more than welcomed to consult elevator& escalator products from our company. Any question please feel free to discuss with us. We have been focusing on offering our clients with spare parts for more than 8 years. We have our company’s philosophy as Service-Quality-Communication-Friendship.
