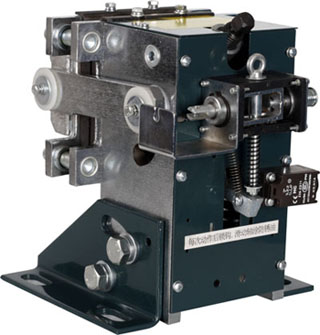

Rope Gripper

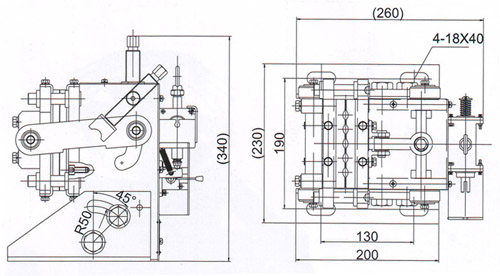

Installation Dimension for OX-250-A
Specification:
| Rated Speed | a)1:1 V≤2.5m/s |
| Rated Load Range | a)1:1 Q=320kg~1600kg |
| Total Weight | a)1:1 992kg~5425kg |

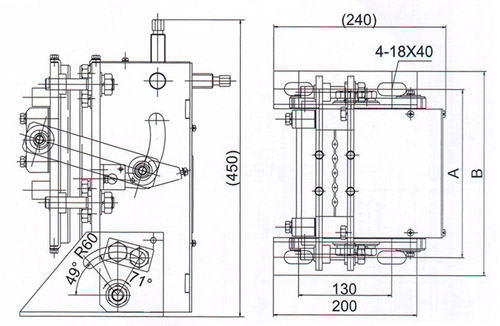

Installation Dimension for OX-250-B
Specification:
| Item | A | B | Wire Rope Diameter | Number of Groove | Traction Sheave Groove Specification |
| 01 | 235 | 285 | ≤16MM | ≤5 | ≤25MM |
| 02 | 270 | 320 | ≤16MM | 6~8 | ≤25MM |
| Rated Speed | a)2:1 V≤0.5m/s |
| Rated Load Range | a)2:1 Q=3000kg~5000kg |
| Total Weight | a)2:1 5590kg~11500kg |
Details
1.Payment: We accept 100% TT, Western Union
2.Shipping: Delivered By Express Courier ( DHL,FEDEX,EMS,etc.),By Air or By Sea.
3.Package: Standard Export Carton or Wood box.
4.Delivery: The delivery time 3-7 working days after get payment.
5.Guarantee: Our company offers 1 year guarantee for all parts under normal use.
You are more than welcomed to consult elevator& escalator products from our company. Any question please feel free to discuss with us. We have been focusing on offering our clients with spare parts for more than 8 years. We have our company’s philosophy as Service-Quality-Communication-Friendship.
